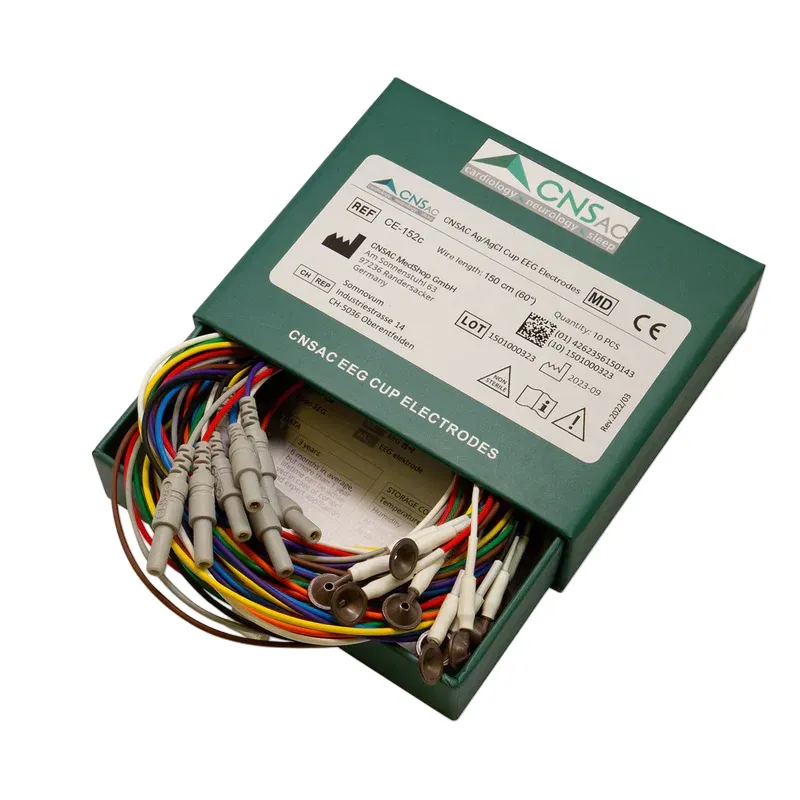

Silver/silver chloride (Ag/AgCl) cup electrodes for EEG and PSG

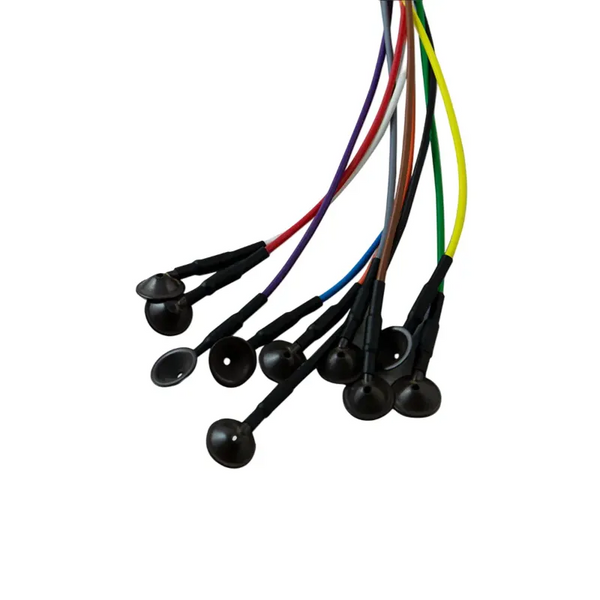

Reusable silver/silver chloride (Ag/AgCl) cup electrodes with highly flexible cable for EEG and PSG
- 150 cm cable length
- 10 mm electrode diameter (Ø)
- 1.5mm DIN plug (touch-protected)
- Highly flexible, biocompatible cable for easy application, cleaning and disinfection
- Low-noise cable
- 10 pieces
- Technical data sheet for "CNSAC Silver/Silver Chloride Cup Electrodes"
Specifications:
| Cup diameter: | 10 mm | |
|---|---|---|
| Bowl height: | 2.8 mm | |
| Cable insulation: | Biocompatible TPU | |
| Core vein: | Kevlar | |
| Electrode/sensor: | Silver-plated with silver chloride | |
| Plug: | DIN 42802 (1.5 mm DIN) | |
| Plug material: | PVC - Medical Grade | |
| Plug color: | Gray | |
| Pack: | 10 pieces in different colors (red, yellow, green, blue, orange, brown, purple, grey, black, white) |
Preparation of the skin and application of the silver-silver chloride (Ag/AgCl) cup electrodes
For a reliable measurement, first treat the patient's skin with an abrasive skin preparation gel such as Nuprep (article no.: CR-001) or OneStep® AbrasivPlus (article no.: CR-005). This process reduces the electrical resistance of the skin and thus ensures good signal quality.
Next, fill the Ag/AgCl cup electrode with an adhesive conductive paste such as lic2® electrode cream, 10 tubes x 100g or Ten20 (item no.: CR-008) and press the electrode firmly onto the prepared area. For better adhesion, a small amount of lic2® can be applied to a compress and placed over the electrode. If the electrode is placed on the face or forehead, it can also be fixed in place using Fixomull® stretch (article no.: DI-048).
Compatibility with various devices:
The electrodes are mechanically and electrically very sophisticated and are compatible with various devices, e.g:
- Compumedics
- Embla
- Somnomedics
- Natus
- Cadwell
- Bio-logic
- Compumedics
- Embla
- Grass
- Xltek
- Lifelines
- Nicolet
- NicoletONE
- Nihon Kohden
- Respironics
- Teca Nervus
