CNSAC disposable EEG cap for newborns
Item number: EC-150
Normal price
32.00
excl.19% VAT (value added tax)
Cap Size NB: Newborn-1 (NB1) | 26-30 cm
988
Newborn-1 (NB1) | 26-30 cm - 32.00
- Newborn-1 (NB1) | 26-30 cm -
32.00 - Newborn-2 (NB2) | 30-34 cm -
32.00 - Newborn-3 (NB3) | 34-38 cm -
32.00

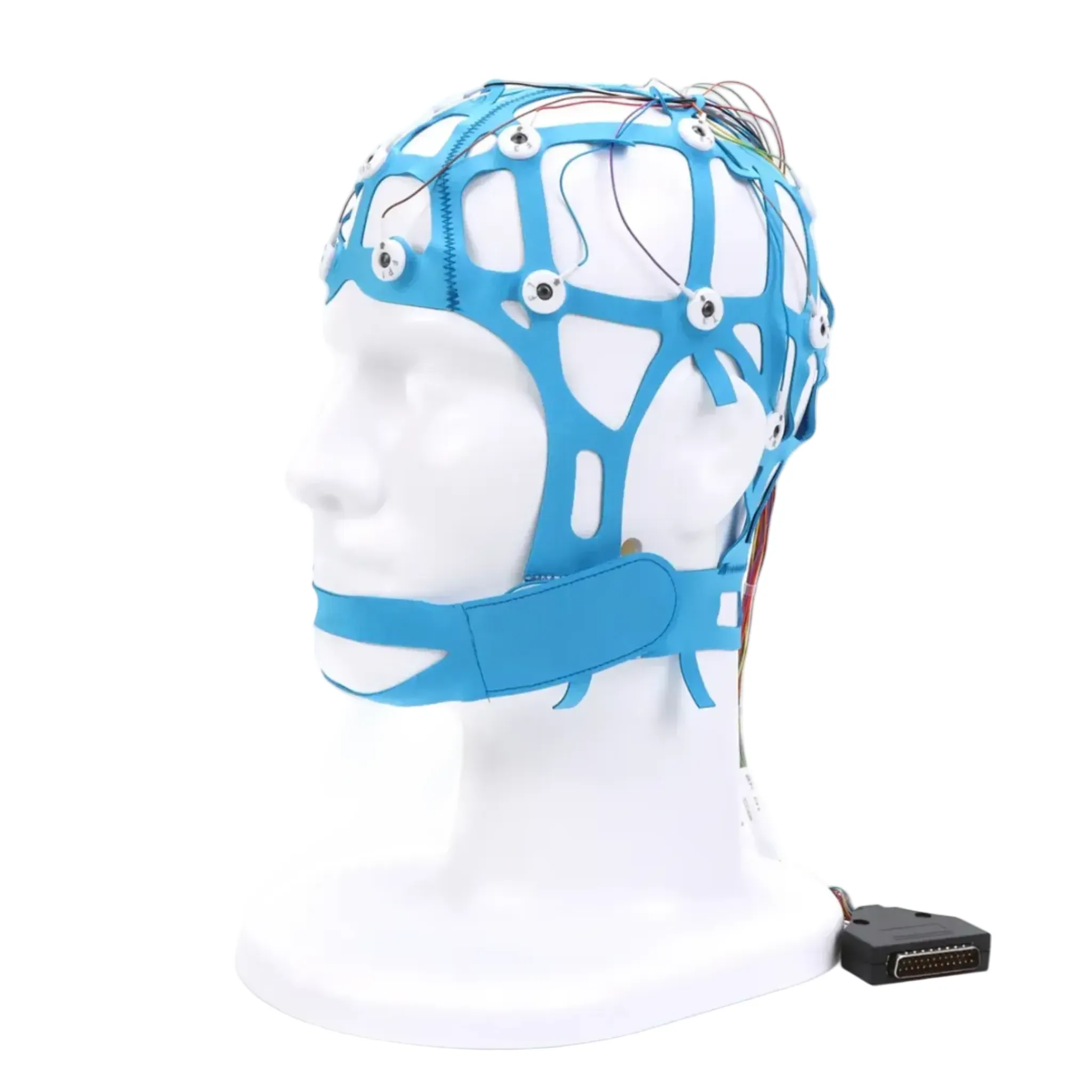

CNSAC disposable EEG cap for newborns
Description
Disposable EEG cap with 13 electrodes according to the 10/20 system for routine and long-term
EEG

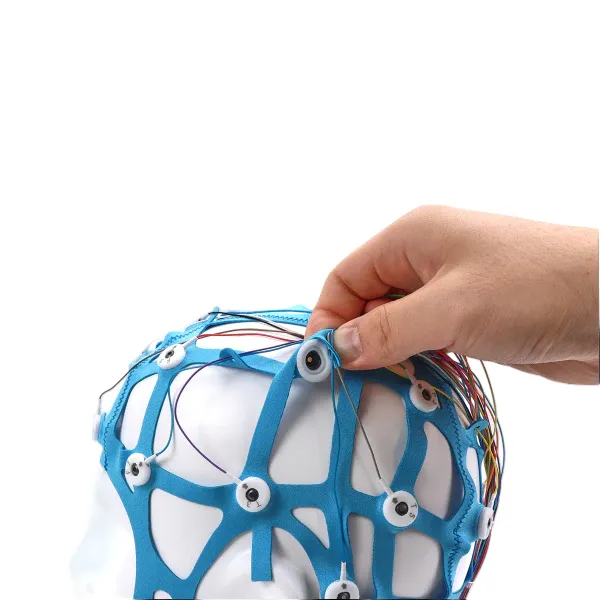

Highly flexible EEG cap with extra soft material for reliable and practical
EEG measurement
Very beneficial to avoid the risk of cross-contamination in hospitals and clinics
Properties:
- Electrode positions according to the international 10-20 system
- 13 Ag/AgCl electrodes (silver / silver chloride)
- DB 25 connection cable
- Compatible with all EEG devices through the use of adapter cables (1.5 mm
DIN plug)

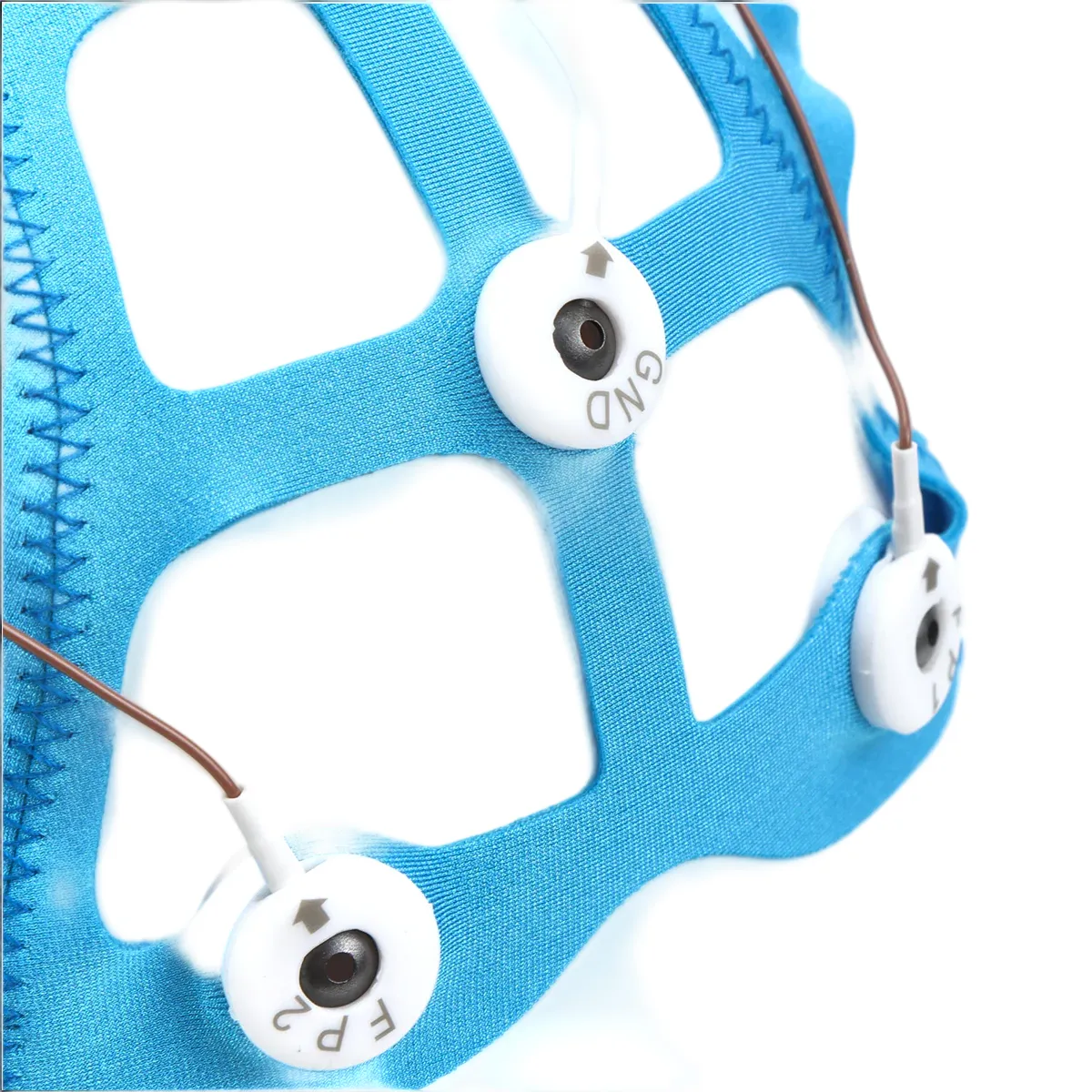

Electrode position: FP1, FP2, GND, M1 (A1), T3, C3, C4, T4、M2 (A2), CZ, REF, O1, O2
To use this product, you need:
Adapter cable for disposable EEG cap, 13 channels
Accessories:
Guideline table for size and head circumference of the CNSAC disposable EEG cap for
different age groups:
| Hood size | Head circumference | EEG channels |
|---|---|---|
| Newborn-1 (NB1) | 26-30 cm | 13 (FP1, FP2, GND, M1, T3, C3, C4, T4、M2, CZ, REF, O1, O2) |
| Newborn-2 (NB2) | 30-34 cm | 13 (FP1, FP2, GND, M1, T3, C3, C4, T4、M2, CZ, REF, O1, O2) |
| Newborn-3 (NB3) | 34-38 cm | 13 (FP1, FP2, GND, M1, T3, C3, C4, T4、M2, CZ, REF, O1, O2) |
| Infants (N) | 38-42 cm | 23 (FP1, FP2, GND, F7, F3, FZ, F4, F8, M1, T3, C3, CZ, C4, T4, M2, REF, T5, P3, PZ, P4, T6, O1, O2) |
| Infant (I) | 42-46 cm | 23 (FP1, FP2, GND, F7, F3, FZ, F4, F8, M1, T3, C3, CZ, C4, T4, M2, REF, T5, P3, PZ, P4, T6, O1, O2) |
| Children (C) | 46-50 cm | 23 (FP1, FP2, GND, F7, F3, FZ, F4, F8, M1, T3, C3, CZ, C4, T4, M2, REF, T5, P3, PZ, P4, T6, O1, O2) |
| Adults Small (S) | 50-54 cm | 23 (FP1, FP2, GND, F7, F3, FZ, F4, F8, M1, T3, C3, CZ, C4, T4, M2, REF, T5, P3, PZ, P4, T6, O1, O2) |
| Adult Medium (M) | 54-58 cm | 23 (FP1, FP2, GND, F7, F3, FZ, F4, F8, M1, T3, C3, CZ, C4, T4, M2, REF, T5, P3, PZ, P4, T6, O1, O2) |
| Adults Large (L) | 58-62 cm | 23 (FP1, FP2, GND, F7, F3, FZ, F4, F8, M1, T3, C3, CZ, C4, T4, M2, REF, T5, P3, PZ, P4, T6, O1, O2) |
| Adults Extra Large (XL) | 62-66 cm | 23 (FP1, FP2, GND, F7, F3, FZ, F4, F8, M1, T3, C3, CZ, C4, T4, M2, REF, T5, P3, PZ, P4, T6, O1, O2) |
